Why do Right Angle Pogo pin ?

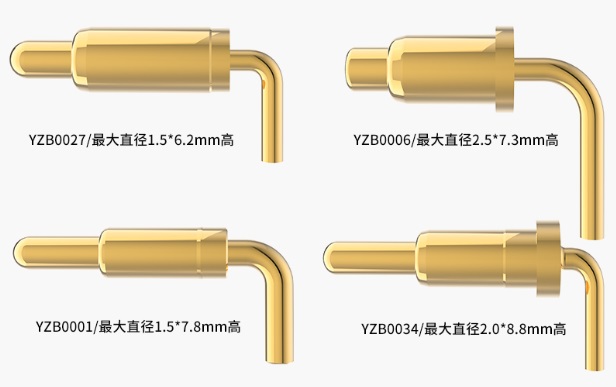

Right Angle Pogo pin is a kind of connector that achieves contact at a specific Angle by bending the needle shaft or needle tube. Common bending angles include 90°, 45°, 30°, etc. This design breaks through the spatial limitations of traditional straight pins and demonstrates unique adaptability in complex equipment layouts. The following systematically elaborates on its core applications and technical advantages from fields such as consumer electronics, industrial automation, medical equipment, automotive electronics, and aerospace.

I. Consumer Electronics: Core Components for miniaturization and modular design

Precise connection of smart wearable devices

The Right Angle Pogo pin, with its compact L-shaped structure (such as 90° bending), has become the preferred connection solution for devices like TWS headphones and smartwatches. For instance, in the charging case of TWS earphones, the curved pins are embedded vertically into the side wall of the case body, forming stable contact with the flat contact points at the bottom of the earphones. This effectively saves vertical space and enables the thickness of the charging case to be compressed to less than 8mm. Meanwhile, its gold plating process (thickness ≥0.2μm) combined with an IPX7-level waterproof design can resist sweat corrosion (pH 4.5-7.0), ensuring that the contact resistance remains stable within 50mΩ after 5,000 insertions and un interruptions in sports scenarios

2. Signal transmission of the hinge module for foldable screen mobile phones
The hinge area of foldable screen mobile phones needs to integrate multiple high-speed signals (such as MIPI DSI, USB 3.2) within a limited space. The 30°Right Angle Pogo pin array (with a spacing of 0.4mm) is adopted, which can compensate for the deformation tolerance of ±0.15mm through the spring when the rotating shaft opens and closes, maintaining the stability of 10Gbps data transmission. Compared with the FPC cable layout solution, the fatigue life of the bent pin is increased by three times, reaching 200,000 folding cycles
3. Detachable module for fast charging and data synchronization
Accessories such as camera handles and external keyboards are integrated with "magnetic attraction + electrical connection" through the Right Angle Pogo pin. For instance, a certain moving camera module adopts a 45° bent needle design, which can achieve a high current transmission of 5A under the adsorption of a 10N magnetic force. The bent structure can counteract the lateral shear force and avoid the jamming problem when the straight needle is inserted or removed. This design reduces the module replacement time to 0.5 seconds and improves the efficiency by 80% compared with the Micro USB interface


Ii. Industrial Automation: A Key Interface for High Reliability and Vibration Resistance

Robot tool quick-change system
The rapid replacement of the end effector of industrial robots relies on the multi-media transmission capability of the Right Angle Pogo pin. Take the KUKA KR AGILUS series as an example. Its gun changer integrates 12 groups of 90° bent pins, which respectively transmit 24V/20A power, Ether CAT signals and 4MPa pneumatic pressure. The bent foot design enables the needle body to be horizontally connected to the socket, avoiding dust accumulation during vertical installation. Even in a 10Grms vibration environment, the contact resistance fluctuation rate remains less than 2%
2. Automated production line testing tooling
In the functional test of the mobile phone motherboard, the bent pins achieve multi-level contact access through the "probe tower" structure. It adopts a Z-shaped double bending design (90° first and then 45°), which can simultaneously contact the test points on both the front and back sides of the PCB, and the single test coverage rate is increased to 98%. Compared with traditional probes, the contact force deviation of the bent foot structure is controlled within ±10gf, ensuring that the false detection rate is less than 0.01% under high-throughput testing
3. AGV wireless charging docking system
The automatic guided vehicle (AGV) adopts the ground embedded Right Angle Pogo pin receiving end and is connected to the top pin array of the charging pile at an Angle of 15°. The curved design enables the contact surface to adaptively correct within a positioning error of ±5mm, combined with a 5,000-cycle plug-and-pull life, meeting the requirements of continuous operation. The actual test of a certain automobile factory shows that the charging efficiency of this solution reaches 92%, which is 12% higher than that of inductive wireless charging

Iii. Medical Equipment: Dual Guarantees of Safety and Biocompatibility

Wearable medical sensors
The dynamic electrocardiogram monitoring patch adopts medical-grade stainless steel bent pins (conforming to the ISO 10993-10 biocompatibility standard) and adheres to the skin surface at a 120° bending Angle. The curved structure reduces the pressure on the dermis, preventing allergic reactions caused by long-term wearing. Meanwhile, the surface of the needle body is coated with Parylene C, which can withstand repeated wiping with 75% alcohol and meets the requirements of hospital infection control
2. Modular endoscope lens group
The lens of the electronic endoscope and the main unit achieve 4K image signal transmission through the micro Right Angle Pogo pin. It adopts a coaxial bent pin design (with the outer layer grounded and the inner core transmitting signals), with a bending radius of only 0.8mm. It supports 10Gbps LVDS differential signal transmission, and the signal-to-noise ratio (SNR) reaches 56dB, far exceeding the 42dB level of traditional welded cables. This design enables the lens assembly to be sterilized at high temperature and high pressure, with a lifespan of over 500 sterilization cycles
3. Portable in vitro diagnostic equipment
Devices such as blood glucose meters and blood gas analyzers use curved pins as interfaces for disposable test strips. The "insertion self-locking + ejection separation" mechanism is achieved through a 60° bent foot structure. The insertion force of the test strip is only 1.2N, which is 40% lower than that of the straight needle design. The rhodium plating process (with a thickness of 0.1μm) ensures that the corrosion resistance in conductive media such as blood and tissue fluid is enhanced by three times, and the contact resistance drift is less than 5%

Iv. Automotive Electronics: Durable Connection Solutions for Harsh Environments

1. In-vehicle wireless charging module
The Right Angle Pogo pin undertakes the functions of foreign object detection (FOD) and charging status feedback in the wireless charging pad of the car center console. It adopts high-temperature resistant bent needles (working temperature -40℃ to 125℃), which are bent at 75° and embedded into the silicone sealing seat, maintaining contact stability even under 15G mechanical impact. The actual test of a certain new energy vehicle model shows that after 100,000 bumpy tests, the false alarm rate of this design is still less than 0.1 times per thousand kilometers

2. BMS battery module acquisition line
The power battery module adopts bent pins to achieve rapid connection of the voltage acquisition line. The L-shaped structure enables the needle body to be installed parallel to the battery housing, saving up to 30% of the longitudinal space and supporting the module stacking height to be compressed from 120mm to 85mm. After 1000 thermal cycles (-20℃↔85℃), the tin-plated copper alloy needle tube still maintains a contact resistance of ≤2mΩ, meeting the ASIL-D functional safety requirements

3. Quick-release interface for the intelligent cockpit display screen
The vehicle-mounted dual screens realize the backplane communication between the instrument panel and the central control screen through the Right Angle Pogo pin. It adopts a double-row 90° bent pin array (spacing 1.27mm), supports high-speed transmission of PCIe 4.0×4, and integrates an EMI shielding cover (attenuation ≥60dB) at the same time. The curved structure reduces the torque of the screen disassembly tool from 5N·m to 1.2N·m, and increases the maintenance efficiency by four times

V. Aerospace: Reliable Connections under Extreme Conditions

1. Power supply interface for satellite deployment mechanism
The solar wing deployment mechanism adopts titanium alloy Right Angle Pogo pin to adapt to the spatial constraints in the folded state with a 135° bending Angle. In a vacuum environment, the gold-plated needle, in combination with the MoS₂ lubricating coating, has a friction coefficient of ≤0.15, ensuring reliable contact within the temperature range of -180℃ to +150℃, with a contact force attenuation rate of <3% per year

2. Modular maintenance interface for airborne equipment
Avionics equipment (such as black boxes and navigation modules) can be quickly replaced under field conditions through bent pins. The Inconel 718 material bent pins (with tensile strength ≥1400MPa) are adopted and bent at 60° and embedded in the quick-lock mechanism. Under the vibration of 50Hz/20Grms, the contact failure cycle is prolonged to 10⁷ times, which is two orders of magnitude higher than that of the traditional D-sub connector

3. Spacesuit life support system
The oxygen regulator of the extravehicular spacesuit transmits physiological monitoring signals using the Right Angle Pogo pin. The curved structure makes the contact points contact the textile circuit layer at a 30° Angle, and the contact pressure is evenly distributed within the range of 0.8-1.2N, avoiding local wear of the fabric. It has passed the MIL-STD-750F radiation resistance certification and still maintains signal integrity at a dose of 100krad

Technological evolution and future trends
The Right Angle Pogo pin is iteratively upgrading in the following directions:

• Material innovation: Nanocrystalline alloys (such as Fe-Si-B) bent needles increase the elastic modulus to 210GPa, breaking through the fatigue resistance life

• Structural Innovation: 3D printed irregular-shaped curved feet (such as spiral bends and S-bends) can adapt to topologically optimized irregular Spaces. 4

• Intelligent integration: The bent pins with built-in MEMS sensors can monitor contact force and temperature rise in real time, enabling predictive maintenance

With the popularization of 5G and AIoT devices, Cnomax Right Angle Pogo pin will continue to make breakthroughs in areas such as miniaturization, high frequency and high speed, and environmental adaptability, and become the core interconnection carrier of cross-industry intelligent hardware.
