Why do the magnets of magnetic connectors tend to fall off easily?

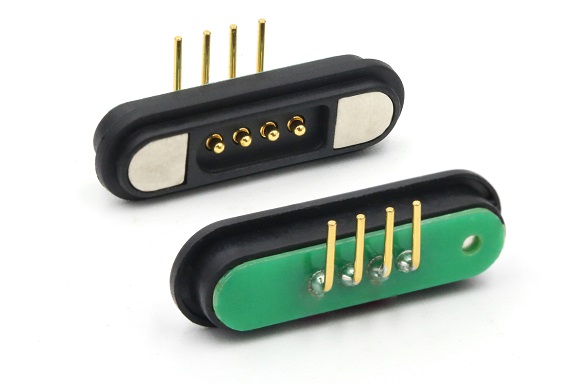

Magnetic connectors, as an important connection method in modern electronic devices, are widely used in consumer electronics, industrial equipment, medical instruments and other fields due to their convenient adsorption characteristics and the advantage of repeated plugging and unplugging. However, the problem that its core component - the magnet - is prone to falling off has long plagued the reliability of the product. This article will systematically analyze the deep mechanism of magnet detachment in magnetic connector from dimensions such as material properties, structural design, environmental stress, process defects, and application scenarios, and put forward optimization suggestions in combination with practical cases.
1. The degradation of magnetic material performance leads to the attenuation of magnetic force

The adsorption force of magnetic connectors directly depends on the magnetic properties of the magnets themselves, and material demagnetization is the primary cause of adsorption failure. According to the second law of thermodynamics, permanent magnets will undergo a slow dis or derization of magnetic moments in their natural state, that is, the natural aging effect

However, the following factors will significantly accelerate this process:

1. Magnetic domain disorder caused by high temperature

When the working temperature approaches or exceeds the Curie temperature of the magnet (such as 310-400℃ of neodymium iron boron), the ordered arrangement of the magnetic domains inside is disrupted by intense thermal motion, resulting in a sudden drop in magnetism. For instance, if no heat insulation measures are taken during the soldering and assembly of magnetic connectors (such as using a high-temperature soldering iron to directly contact the magnet), local overheating will cause partial demagnetization of the magnet, resulting in a 30% to 50% decrease in magnetic force. In addition, long-term operation of the equipment in a high-temperature environment (such as a vehicle-mounted magnetic charger in the engine compartment) can also cause continuous demagnetization.

2. Reverse magnetic field interference and alternating stress

When there are strong electromagnetic devices (such as motors and transformers) near the magnetic attraction connector, the external reverse magnetic field will disrupt the alignment direction of the magnetic domains. Especially in high-frequency alternating magnetic fields (such as the 50kHz magnetic field generated by wireless charging coils), the repeated flipping of magnetic domains leads to hysteresis loss, and the magnetic energy product gradually decays. Experimental data show that when neodymium iron boron magnets operate under a reverse magnetic field of 100mT for 100 hours, the magnetic flux loss can reach 8%

3. Chemical corrosion and oxidative erosion

Rare earth magnets such as neodymium iron boron are prone to react with water and oxygen in the environment to form oxides such as Nd(OH)₃. This oxide layer not only reduces the surface magnetic permeability, but also causes microscopic cracks due to volume expansion, further intensifying the decline of magnetic properties. For instance, an unnickel-plated magnet can lose up to 20% of its magnetic force after being used in an environment with a humidity of over 80% for six months

Second, mechanical structure design defects cause stress concentration

The way the magnet is fixed in the connector directly affects its anti-detachment ability. Common design problems include:
Insufficient mechanical matching of the fixed structure and improper control of the dimensional tolerance of the magnet installation slot (such as a gap >0.1mm) can lead to the following problems:

• Vibration displacement accumulation: High-frequency and micro-amplitude vibrations during equipment operation (such as the vibration of a drone motor) cause the magnet to repeatedly collide with the tank wall, resulting in fatigue cracks in the rubber layer.

• Shear stress concentration: When the edge of the magnet is in right-angle contact with the slot opening, the lateral force during the plugging and unplugging process (such as the user plugging and unplugging at an Angle) will cause stress concentration at the sharp corner, accelerating the structural fracture. The improvement plan is to change the right Angle to a R0.3mm fillet, which can increase the shear strength by 40%.

2. The size of the magnet is out of balance with its adsorption force

When the relationship between the volume (V) of the magnet and the adsorption force (F) violates the empirical formula F=k·V²/3, two failure modes are prone to occur:

• Over-design risk: Excessive increase in the size of the magnet in pursuit of strong adsorption force (such as upgrading from Φ10mm×3mm to Φ12mm×4mm), resulting in the inertial force (F=ma) during separation exceeding the tensile strength of the adhesive layer (such as epoxy resin adhesive <15MPa). A case of a magnetic charging case for TWS headphones shows that when the diameter of the magnet increased by 20%, the drop test drop rate rose from 0.5% to 12%.

• Design deficiency risk: The magnet is too small in size, resulting in insufficient adsorption force per unit area. Even slight external force can cause detachment. For instance, a certain flat magnetic keyboard connector uses a Φ4mm magnet. When tilted at 30°, its own weight can cause it to fall off. It needs to be increased to Φ6mm and the array arrangement optimized.

Iii. Environmental stress accelerates the failure of the bonding interface

The adhesive between the magnet and the carrier is a key barrier to prevent detachment, but the following environmental factors can weaken its effectiveness:

Thermal stress caused by temperature cycling

When the equipment operates within a wide temperature range of -40℃ to 85℃ (such as vehicle-mounted connectors), the difference in thermal expansion coefficients between the magnet and the aluminum alloy housing will generate periodic shear stress. Calculated based on a temperature difference of ΔT=100℃, the shear stress at the edge of a Φ8mm magnet can reach, exceeding the tolerance limit of most acrylic adhesives, resulting in interface delamination.

2. Chemical medium penetration corrosion

In medical or industrial scenarios, chemical substances such as disinfectants (such as 75% ethanol) and cutting fluids can penetrate the adhesive layer, triggering the following reactions:

• Plasticizer precipitation: Phthalate plasticizers in the plastic casing migrate to the rubber layer, reducing its glass transition temperature (Tg) from 80 ° C to 40 ° C and decreasing its creep resistance.

• Hydrolysis reaction: Polyurethane adhesives will experience ester bond breakage in an alkaline environment with pH>10, and the bonding strength will decline by 60% within three months.

Fourth, manufacturing process defects pose hidden risks of detachment

Technological omissions in the production process are one of the main causes leading to early failure:

1. Improper surface treatment process

When the adhesion of the magnetic coating (such as Ni-Cu-Ni) is insufficient, the adhesive actually adheres to the coating rather than the magnetic substrate. Analysis of a certain batch of faults shows that for connectors with a coating adhesion force of less than 5MPa (the standard requirement is greater than 15MPa), the coating peeling rate reached 35% after 1000 insertions and unconnectors

2. Control of dispensing process parameters:

Deviations in parameters such as the amount of glue injection and curing conditions will directly affect the bonding quality:

Insufficient amount of adhesive: When the thickness of the adhesive layer is less than 0.05mm, it is prone to form bubble defects, and the shear strength decreases by 70%.

• Incomplete curing: When UV glue cures under an illuminance of less than 20mW/cm², the crosslinking degree only reaches 60%, and the durability is significantly reduced.

V. Extreme Challenges in Usage Scenarios

The actual usage conditions of end users often exceed the design boundaries. Typical scenarios include:

Dynamic impact load

When a mobile device drops, the magnet is subjected to an instantaneous impact acceleration (for example, a 1-meter drop generates a 50G impact). A certain test shows that when a magnetic connector without a buffer structure drops from 1.5 meters, the probability of the magnet falling off is 8 times higher than that of the design with a silicone gasket

2. Long-term fatigue load

Frequent plugging and unplugging (such as 50 times a day per day) will cause the rubber layer to suffer cumulative fatigue damage. According to Miner's linear damage theory, when the stress amplitude σ=0.6σmax, the fatigue life N of the epoxy adhesive is approximately 10⁴ times, which does not match the user's usage frequency of 2 years sufficiently

Vi. Systematic Solutions

Material-level optimization

Select magnetic materials with a high Curie temperature (such as SmCo, Tc=800℃) and increase the coating thickness (≥15μm Ni)

The shear strength was increased to 25MPa by using nano-modified epoxy adhesive (with SiO₂ nanoparticles added)

2. Structural innovation design

The development can share 70% of the pull-out force through snap fasteners

Optimize the arrangement of the magnet array and adopt the Halbach array to increase the edge magnetic flux density by 30%

3. Precise process control

The introduction of plasma cleaning increases the adhesion of the surface and the adhesive layer by three times

Online infrared detection is adopted to ensure that the curing degree of the adhesive layer is over 95%

The detachment of magnets in magnetic connectors is essentially the result of the coupling of multiple factors such as material failure, mechanical stress, and environmental aging. By constructing a magnetic-mechanical-thermal-chemical multi-physics field simulation model and implementing full life cycle quality control, the dropout rate can be controlled at a high reliability level of <0.1%. In the future, with the application of technologies such as self-healing adhesives and topological optimization structures, the reliability of magnetic connections will enter a new era.
