Why Pogo Pins Fail to Conduct Electricity?

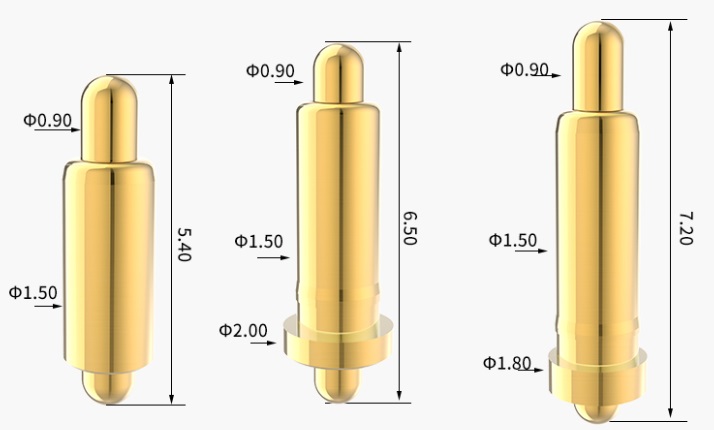

Pogo pins are crucial components used in a variety of applications, such as circuit testing, mobile devices, connectors, and even automotive electronics. As spring-loaded connectors, they are designed to make temporary electrical contact between different surfaces, ensuring a reliable electrical connection. However, there are instances where pogo pins fail to conduct electricity properly, resulting in a poor or intermittent connection. This issue can compromise the performance of the device and lead to functional failures.

The inability of a pogo pin to conduct electricity can stem from several factors, ranging from design flaws and manufacturing defects to improper usage and environmental conditions. This article will explore the common reasons why pogo pins might fail to conduct electricity and provide insights into troubleshooting and preventive measures.

1. Contact Resistance Issues

The most common cause for a pogo pin failing to conduct electricity is increased contact resistance at the pin's connection point. Pogo pins rely on spring-loaded contacts that press against a pad or PCB, allowing current to flow. Any issue that disrupts this connection can lead to resistance that hinders the flow of electricity.

 1.1 Surface Contamination

One of the leading causes of high contact resistance is the presence of contaminants on the contact surfaces. Dust, dirt, oil, or other particles can accumulate on the pogo pin or the pad it connects to, preventing a good electrical contact.

 Oxidation: Over time, metals like copper and silver are prone to oxidation, which can create a thin insulating layer on the contact surface, increasing resistance. Gold-plated pogo pins are less susceptible to oxidation, but they can still suffer from other types of contamination.

 Moisture: Excess moisture, either from humidity or water exposure, can lead to corrosion or the formation of a conductive film between the pogo pin and its target, which can impede electrical conduction.

 1.2 Insufficient Contact Pressure

Pogo pins are designed with a spring mechanism to exert pressure on the target pad. If the spring force is insufficient or inconsistent, the pin may not press hard enough against the pad, resulting in a poor electrical connection.

 Spring Fatigue: Over time, the internal spring mechanism of a pogo pin may weaken due to repeated use, causing reduced contact pressure and consequently, increased resistance.

 Mechanical Deformation: The pogo pin itself may undergo deformation after being subjected to mechanical stress or misuse, leading to irregular contact pressure that results in higher resistance.

 1.3 Wear and Tear

Repeated use of pogo pins can cause mechanical wear on the contact surfaces. This wear reduces the available contact area, causing an increase in contact resistance. As the contact surface becomes more worn, the pin may no longer make reliable electrical contact with the pad or PCB.

 Plating Wear: In the case of gold or silver-plated pogo pins, frequent contact can wear away the plating, exposing less conductive materials beneath and increasing resistance.

2. Poor Manufacturing Quality

Manufacturing defects can also cause pogo pins to fail in conducting electricity. These defects are typically the result of substandard quality control during production.

 2.1 Defective Spring Mechanism

The internal spring in a pogo pin is responsible for maintaining the contact force between the pin and the pad. If the spring is poorly manufactured, it may fail to provide the necessary pressure, resulting in unreliable electrical contact. Springs that are either too weak or too stiff can both cause problems.

 Spring Fatigue: Manufacturing defects, such as improper metal selection or insufficient tempering, can cause springs to lose their elasticity faster, leading to failure in maintaining adequate pressure.

 2.2 Misalignment of Contact Components

During the manufacturing process, misalignment of the pogo pin's internal components can occur, resulting in poor contact. If the contact tip, spring, or housing is not aligned properly, the pin may not make a reliable connection with the target pad or PCB, causing an open circuit or high resistance.

 Poor Soldering or Assembly: If the pogo pin is poorly assembled, there may be issues with the solder joints or other connections that prevent proper electrical contact.

 2.3 Substandard Materials

Using inferior materials for the construction of the pogo pin can also contribute to electrical failures. If the contact materials are not of high quality, the pin may not conduct electricity efficiently. For instance:

 Low-Quality Contacts: Using materials like cheap copper or low-grade gold plating may result in increased resistance, oxidation, or wear over time.
 Weak Housing Materials: The housing material needs to withstand the mechanical forces of the spring and maintain its integrity. If the housing material is too soft or brittle, it could deform and affect the pin's ability to make a secure connection.

3. Electrical Disconnection or Short Circuits

A pogo pin's electrical failure can also be attributed to disconnection or short-circuiting issues, particularly when the pin is incorrectly connected to the target pad.

 3.1 Incorrect Pin Placement

If the pogo pin is not correctly aligned with the pad or connector, it may not make full contact. This misalignment could result in partial electrical connection, which may not allow current to flow effectively. In testing environments, where the pogo pin may be placed on test pads, any slight deviation in positioning can cause failure.

 3.2 Broken or Damaged Pin

Physical damage, such as bending, cracking, or breaking the pogo pin, can lead to electrical disconnections. In such cases, the pin might lose its ability to press against the target pad or make proper electrical contact, resulting in a total failure to conduct electricity.

 3.3 Short Circuits

On the other hand, a short circuit could occur if the pogo pin’s internal components come into contact with unintended parts of the circuit or housing. This can lead to electrical failure, as the current bypasses the intended path.

 Overheating: A short circuit can cause excessive heating within the pogo pin, leading to further damage to the internal components, such as the spring or the contact surfaces.

 Contacting Adjacent Pads: In certain applications, the pogo pin may unintentionally make contact with neighboring pads or circuits, resulting in a short circuit and subsequent electrical failure.

4. Environmental Factors

Environmental conditions can also contribute to the failure of pogo pins to conduct electricity. Extreme or fluctuating environmental factors can affect the materials used in the pogo pins and their ability to maintain proper electrical contact.

 4.1 Temperature Extremes

Pogo pins are designed to function within a specific temperature range. High temperatures can cause materials to expand, which may result in loosening of the contact components. On the other hand, low temperatures can cause contraction, potentially leading to the pin failing to make proper contact. Additionally, heat generated by excessive current flow can damage the pogo pin, leading to poor conductivity.

 Thermal Expansion: The differential thermal expansion of the materials used in the pogo pin can cause stress on the connection, weakening the contact over time.

 4.2 Humidity and Corrosion

Moisture and humidity can promote corrosion on the contact surfaces of the pogo pin. Corrosion can increase the resistance at the contact point, leading to poor conduction. In environments with high humidity, it is critical to use pogo pins with corrosion-resistant coatings (such as gold or nickel) to prevent degradation over time.

 Oxidation: Oxidation due to moisture can cause a thin insulating layer to form on the surface of the pogo pin, impairing electrical conductivity.

 4.3 Vibration and Mechanical Stress

In applications subject to vibration or mechanical stress, pogo pins may undergo movement or impact that causes them to lose their alignment or physical integrity. This could result in poor or intermittent electrical contact.

 Pin Misalignment: Vibration can cause the pin to misalign with the target pad, breaking the electrical connection.

 Spring Fatigue: Repeated mechanical stress can cause the spring mechanism to weaken, reducing its pressure and, ultimately, the quality of the electrical connection.

5. Improper Usage

Improper usage or mishandling of pogo pins can also lead to electrical failures. For example, applying excessive force when inserting the pogo pin into a socket or using it in a configuration outside its intended design parameters can cause the pin to fail.

 Overforce: Excessive force can deform the pogo pin, misalign its components, or damage the internal spring mechanism, preventing it from conducting electricity.
 Wrong Application: Using a pogo pin in an application that exceeds its current, voltage, or environmental rating can cause it to fail. For instance, using a low-voltage-rated pogo pin in high-voltage applications can lead to breakdown and failure of the electrical connection.

6. Cnomax about pogo pin Conclusion

Pogo pins are generally reliable and durable components, but various factors can lead to electrical failure. Issues such as contamination, insufficient contact pressure, wear and tear, poor manufacturing quality, misalignment, environmental stress, and improper usage can all contribute to a pogo pin’s inability to conduct electricity.

To mitigate these issues, regular maintenance, careful selection of materials and designs, proper handling, and choosing the right pogo pin for the specific application are essential steps. Identifying the root cause of the problem is key to troubleshooting and ensuring that pogo pins maintain their functionality in a wide range of applications. By addressing these potential issues, you can significantly improve the longevity and reliability of pogo pins in electronic systems.
