Differences and advantages between SMD Pogo Pin and DIP Pogo Pin

In the field of electronic connectors, Pogo Pin, as a special spring pin connector, has been widely concerned by the market with its unique structure and wide application scenarios. Among them, SMD (Surface Mount Device) type Pogo Pin and DIP (Dual Inline Package) type Pogo Pin as two mainstream packaging forms, each has unique differences and advantages. This article will delve into the differences between these two types of Pogo pins and their advantages in terms of performance and application.

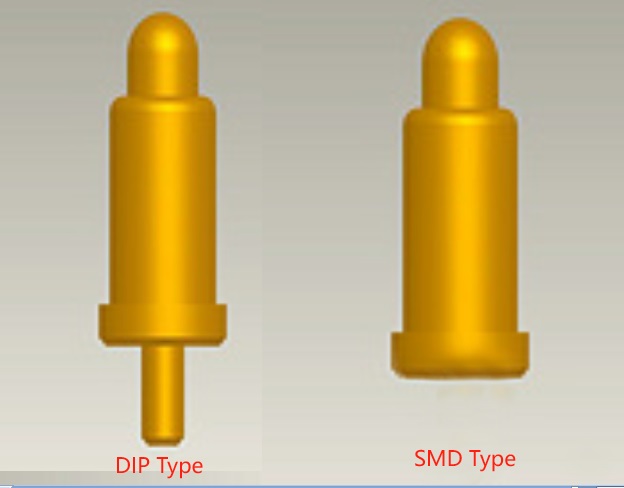

1. Overview of differences

Encapsulation form
SMD Pogo Pin: Using surface mount technology, the Pogo Pin is directly welded to the surface of the PCB (Printed Circuit Board). This type of package has the advantages of small size, light weight and easy automatic production.
DIP Pogo Pin: A dual-in-line package is used, and the pin needs to be inserted into the PCB jack and fixed by welding. DIP package form is relatively traditional, suitable for pin spacing and height have certain requirements.
Installation mode
SMD Pogo Pin: Mainly installed by SMT (Surface Mount Technology, surface assembly technology) automatic mounting reflow technology. After the solder paste is printed on the PCB surface, the Pogo Pin is affixed to the specified position by the patch machine, and then the solder paste is melted and cured by reflow welding process, so as to achieve a firm connection with the PCB.
DIP Pogo Pin: The Pin of the Pogo Pin is inserted into the jack of the PCB through the insert machine, and then welded by wave soldering or dip welding. Although this installation method is relatively complex, it has unique advantages in some specific application scenarios.

2, advantage analysis

Advantages of SMD Pogo Pins
Highly integrated: The SMD package form greatly reduces the volume of Pogo Pin, which is conducive to improving the integration degree and space utilization of the circuit board.
Easy to automate production: The application of SMT automatic patch reflow technology makes the production process of SMD Pogo Pin highly automated, greatly improving production efficiency and product quality.
Good heat dissipation performance: Because Cnomax SMD type Pogo Pin is mounted directly on the PCB surface, its heat dissipation path is short, which is conducive to the rapid dissipation of heat, thereby improving the stability and reliability of the product.
Benefits of DIP type Pogo Pin
Adjustable pin spacing: The DIP package form allows the user to adjust the pin spacing as needed to suit different PCB layouts and circuit design requirements.
Easy maintenance: When the DIP Pogo Pin fails, because its pin is exposed, it is easy to replace and repair, reducing maintenance costs.
Strong adaptability: In some specific application scenarios, such as those requiring greater mechanical stress or vibration shock, DIP Pogo pins show greater adaptability due to their robust Pin structure and high insertion and withdrawal lifetime.

3. Summary and prospect

In summary, there are significant differences between SMD Pogo Pin and DIP Pogo Pin in package form, installation mode and performance characteristics. SMD Pogo Pin shows great application potential in the trend of miniaturization and lightweight of electronic products due to its advantages of high integration, easy automated production and good heat dissipation performance. The DIP Pogo Pin, with its adjustable pin spacing, convenient maintenance and strong adaptability, still has irreplaceable advantages in specific application scenarios.
With the continuous development and innovation of electronic technology, the packaging form and application field of Pogo Pin will continue to expand in the future. On the one hand, with the continuous progress of automated production technology, the production efficiency and product quality of SMD Pogo Pin will be further improved; On the other hand, with the continuous emergence of new materials and new processes, Cnomax DIP Pogo pins will continue to optimize their performance characteristics to meet more diverse market needs. In short, whether it is the SMD type or the DIP type Pogo Pin, it will play an important role in their respective fields and jointly promote the prosperity of the electronic connector industry.
