How to design the smallest Pogo Pin ?

Pogo pins, also known as spring-loaded pins, are essential components in various electronic devices, providing reliable electrical connections in a compact form factor. As technology advances, the demand for smaller and more efficient components has led to the need for designing the smallest pogo pin possible. This article explores the considerations, challenges, and potential solutions in the design of miniature pogo pins.

What are Pogo Pins?

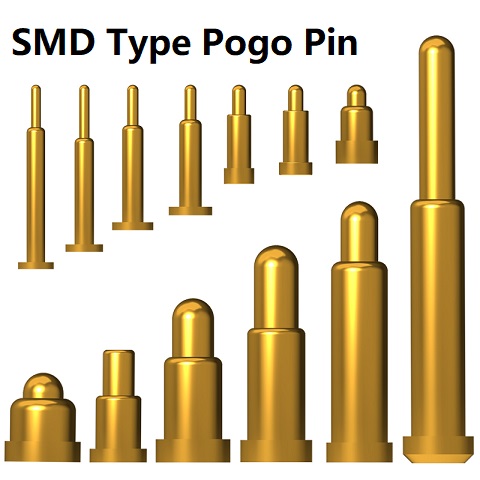

Pogo pins are cylindrical metal pins that are spring-loaded, allowing them to make temporary connections with a corresponding pad or contact point. They are widely used in applications such as:

Testing and Programming: Connecting to circuit boards for testing or programming.
Battery Contacts: Providing connections in battery-operated devices.
Wearable Technology: Facilitating connections in compact devices like smartwatches.

Importance of Size

The size of pogo pins is critical in modern electronics, where space is at a premium. Smaller pogo pins can lead to:

Reduced Footprint: Allowing for more compact designs.
Increased Density: Enabling more connections in a given area.
Enhanced Portability: Making devices lighter and easier to carry.

 Design Considerations

Material Selection

The choice of materials is crucial in designing small pogo pins. Common materials include:

Stainless Steel: Offers good conductivity and corrosion resistance.
Copper Alloys: Provide excellent electrical conductivity but may require coatings for durability.
Plastics: Used for insulation and housing components, but must withstand mechanical stress.

Spring Mechanism

The spring mechanism is vital for the functionality of pogo pins. Key considerations include:

Spring Size: A smaller spring must still provide adequate force to ensure a reliable connection.
Material: The spring material must be resilient and maintain its properties over time.
Compression Ratio: The design must allow for sufficient compression without compromising performance.

Tip Design

The tip of the pogo pin is where the electrical connection occurs. Factors to consider include:

Shape: A smaller, rounded tip can improve contact but may reduce surface area.
Coating: A conductive coating can enhance performance but may add thickness.
Height: The height of the tip must be optimized to ensure proper engagement with the contact pad.

 Challenges in Miniaturization

Manufacturing Limitations

As pogo pins shrink in size, manufacturing processes must adapt. Challenges include:

Precision Engineering: Smaller components require advanced manufacturing techniques to ensure accuracy.
Quality Control: Ensuring that each pin meets performance standards becomes more complex with smaller sizes.

 Mechanical Stability

Smaller pogo pins may face issues with mechanical stability, including:

Bending and Breaking: Thin pins are more susceptible to bending or breaking under stress.
Fatigue: The spring mechanism must endure repeated use without losing functionality.

 Potential Solutions

 Advanced Materials

Utilizing advanced materials such as high-strength alloys or composites can enhance durability while allowing for smaller designs.

 Innovative Manufacturing Techniques

Employing techniques like micro-machining or 3D printing can enable the production of intricate designs that were previously impossible.

Design Optimization

Using simulation software to model the performance of pogo pins can help in optimizing dimensions and materials before physical prototypes are created.

Designing the smallest pogo pin presents a unique set of challenges and opportunities. By focusing on material selection, spring mechanisms, and tip design, engineers can create compact pogo pins that meet the demands of modern electronics. As technology continues to evolve, the quest for smaller, more efficient components will drive innovation in the design and manufacturing of pogo pins, paving the way for the next generation of electronic devices.
