How to design the magnetic force of magnetic connectors?

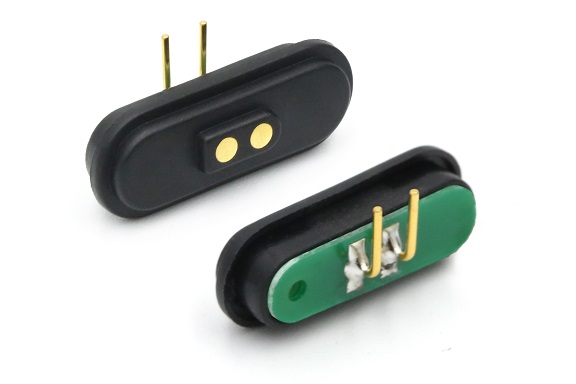

The magnetic range of magnetic connectors varies due to application requirements, design specifications and manufacturing costs, and there is no fixed standard value. However, according to the common magnetic connector products and design practices on the market, the general magnetic range can be summarized:

Common magnetic connectors have a magnetic range of roughly 150 grams to 3000 grams.

This range covers a wide range of scenarios from lightweight to heavy-duty applications. To be specific:

• Lightweight applications: such as smart wearable devices (smart watches, smart bracelets, etc.), Bluetooth headsets, etc., these devices usually have low magnetic force requirements, and the magnetic force range may be between 150 grams and 500 grams. This magnetic force is sufficient to ensure the stability of the device when connected, and it is easy for the user to plug and unplug.

• Medium load applications: such as tablet computers, mobile phone magnetic chargers, vehicle equipment, etc., these devices have moderate requirements for magnetic force, and the magnetic range may be between 500 grams and 1500 grams. This magnetic force can ensure that the device is stable and reliable when connected, while not causing excessive resistance to the user.

Heavy load applications: such as medical equipment, industrial equipment, aerospace electronics, etc., these devices have higher requirements for magnetic forces, and the magnetic force range may be between 1500 grams and 3000 grams, or even higher. This magnetic force can ensure that the equipment is connected to withstand large loads and vibration shocks, and maintain the stability of the connection.

It should be noted that the magnetic force of the magnetic connector is not the bigger the better. Excessive magnetic force may cause difficulties for users to plug and unplug, or even damage the connection port or device. Therefore, when designing magnetic connectors, it is necessary to choose the appropriate magnetic force size according to the actual application needs.

In addition, the magnetic force of the magnetic connector is also affected by many factors such as the magnet material, shape, size, magnetization, and the distance between the magnet and the object to be adsorbed (that is, the air gap). Therefore, in the actual design, it is necessary to conduct adequate testing and verification to ensure that the magnetic force of the magnetic connector meets the application requirements.

If you need to design or select magnetic connectors, it is recommended to choose the appropriate magnetic size according to the specific application scenarios and needs, and consult a professional connector manufacturer or supplier for more detailed technical support and advice.

When designing the magnetic force of the magnetic connector, there is no fixed standard value, because the appropriate magnetic force size depends on a number of factors, including the specific application scenario of the connector, the load required to withstand, the special requirements of the use environment, the user's operating habits and cost considerations. The following is a detailed analysis of the key factors to consider when designing the magnetic force of magnetic connectors:

1. Application Scenarios

1. Charging equipment: Magnetic chargers for devices such as smartphones and tablets need enough magnetic force to ensure stable connection during charging and avoid accidental fall off. However, the magnetic force should not be too large, so as not to make the user feel difficult when pulling out the equipment.

2. Data transmission: The magnetic connector used for data transmission, such as the USB magnetic data cable, needs to ensure the stability and reliability of data transmission during the connection process, and the magnetic force should be moderate, easy for users to plug and remove.

3. Medical equipment: In the medical field, magnetic connectors may be used for devices that are quickly replaced or removed, such as portable monitoring instruments. At this point, the magnetic force needs to be strong enough to ensure the stability of the device when connected, while taking into account the special requirements of the medical environment, such as sterility, easy cleaning, etc.

4. Auto parts: In the automotive industry, magnetic connectors may be used for car chargers, data line connectors, etc. These connectors need to withstand a certain amount of vibration and shock, so the magnetic force needs to be strong enough to maintain a stable connection.

Second, load requirements

The magnetic force of the connector needs to be able to withstand the load it is connected to. If the load is heavy, the magnetic force needs to be increased to ensure the stability of the connection. On the contrary, if the load is light, the magnetic force can be appropriately reduced to save costs and improve the convenience of user operation.

Third, the use of environment

The use of the environment also has an impact on the magnetic force of the magnetic connector. For example, in a humid or corrosive environment, the surface of the connector may be corroded, resulting in a weakening of the magnetic force. Therefore, it is necessary to consider the impact of environmental factors on the magnetic force in the design, and take corresponding protective measures.

4. User operation habits

The user's operating habits are also one of the factors that need to be considered when designing magnetic connectors. For example, for connectors that need to be inserted and removed frequently, the magnetic force should be moderate to facilitate user operation; For connectors that need to be connected for a long time, the magnetic force can be appropriately increased to improve the stability of the connection.

5. Cost consideration

The size of the magnetic force is closely related to factors such as the material, size and magnetization of the magnet, which all affect the cost of the connector. Therefore, when designing magnetic connectors, it is necessary to reduce the cost as much as possible under the premise of meeting the performance requirements.

6. Design suggestions

1. Adequate testing and verification: When designing magnetic connectors, adequate testing and verification should be carried out to ensure that the magnetic force size meets the needs of application scenarios. This includes testing the stability and reliability of the connector in the actual use environment, as well as plugging and unplugging tests simulating user operating habits.

2. Consider the adjustability of the magnetic force: In some application scenarios, it may be necessary to adjust the magnetic force of the magnetic connector according to actual needs. For example, the magnetic force can be adjusted by designing adjustable magnet positions or magnetization.

3. Pay attention to the overall performance of the connector: In addition to the magnetic force size, you also need to focus on other performance index of the connector, such as plug life, contact resistance, insulation resistance etc. Together, these indicators determine the overall performance and reliability of the connector.

In summary, when designing the magnetic force of the magnetic connector, it is necessary to consider multiple factors such as application scenarios, load requirements, use environment, user operation habits and cost. Through adequate testing and verification, as well as focusing on the overall performance of the connector, you can design a magnetic connector that meets the actual needs.

The magnetic force of the magnetic connector is a complex and variable parameter, which is affected by a variety of factors, including the material, shape, size, magnetization, and the distance between the magnet and the object to be adsorbed (i.e. the air gap). Therefore, it is not possible to give a unified, specific magnetic value to describe all magnetic connectors. However, we can analyze the magnetic properties of magnetic connectors from multiple angles and explore how to evaluate and optimize their magnetic forces.

First, the basic principle of magnetic force of magnetic connector

The magnetic force of the magnetic connector is mainly generated by the magnet inside it. Through the action of magnetic field, the magnet produces attractive or repulsive force on the adsorbed object. In magnetic connectors, we mainly focus on attraction because it helps to achieve a stable connection of the connector.

Second, the factors that affect the magnetic force of the magnetic connector

1. Materials of magnets: magnets of different materials have different magnetic properties. For example, NdFeB magnets are among the strongest commercially available, with a magnetic force hundreds of times their own weight. Although the cost of ferrite magnets is low, the magnetic force is relatively weak.

2. The shape and size of the magnet: The shape and size of the magnet will also affect its magnetic force. In general, the larger the size of the magnet, the stronger its magnetic force. In addition, the shape of the magnet also affects the distribution of the magnetic field and the size of the magnetic force. For example, the magnetic field distribution and magnetic properties of bar magnets and ring magnets are different.

3. Magnetization: Magnetization refers to the magnetic moment size per unit volume of the magnet. The higher the magnetization, the stronger the magnetism of the magnet. Magnetization can be controlled by magnetizing a magnet.

4. Air gap: Air gap refers to the distance between the magnet and the object to be adsorbed. The larger the air gap, the faster the magnetic force decays. Therefore, when designing magnetic connectors, it is necessary to minimize the air gap to improve the magnetic force.

Third, evaluation method of magnetic force of magnetic connector

1. Theoretical calculation: under ideal circumstances, the magnetic force of the magnet can be calculated through the theoretical formula of magnetism. However, due to a variety of complex factors in the actual situation (such as uneven distribution of magnetic field, permeability of the adsorbed object, etc.), the theoretical calculation results are often biased from the actual situation.

2. Experimental testing: Experimental testing is the most direct and accurate way to evaluate the magnetic force of magnetic connectors. The actual attraction of the magnet to the adsorbed object can be measured by experiments. Experimental testing can be carried out in a laboratory environment or in a practical application scenario.

Fourth, optimization method of magnetic force of magnetic connector

1. Select the right magnet material and shape: According to the specific needs and application scenarios of the magnetic connector, select the right magnet material and shape to improve the magnetic force. For example, in the case of high magnetic force, you can choose Ndfeb magnets; In cases where special magnetic field distribution is required, special shaped magnets can be selected.

2. Optimize the size and magnetization of magnets: Improve the magnetic force by optimizing the size and magnetization of magnets. For example, while keeping the volume of the magnet unchanged, the magnetic force can be increased by increasing the magnetization; While keeping the magnetization constant, the magnetic force can be improved by increasing the magnet volume.

3. Reduce the air gap: Reduce the air gap to improve the magnetic force by optimizing the structural design of the magnetic connector. For example, precision manufacturing processes and assembly techniques can be used to ensure a close contact between the magnet and the object being adsorbed; Auxiliary devices (such as springs, elastic sheets, etc.) can be used to maintain a stable contact between the magnet and the object being adsorbed.

4. The use of multi-pole magnetization technology: multi-pole magnetization technology can effectively reduce the phenomenon of magnetic leakage, improve the utilization rate of magnetic field and magnetic force. By using multi-pole magnetization technology, the magnet can form a stronger magnetic closed-loop effect on the adsorptive object, thereby improving the magnetic force.

Five, magnetic connector magnetic practical application cases

In practical applications, the magnetic force of the magnetic connector needs to be determined according to specific needs and application scenarios. For example, in the field of wireless charging of smartphones, magnetic connectors need to provide enough magnetic force to ensure that the phone remains stable during the charging process; In the field of smart home devices, magnetic connectors need to provide appropriate magnetic force to facilitate users to plug and unplug operations.

Vi. Summary

The magnetic force of magnetic connectors is a complex and variable parameter, which is affected by many factors. In order to evaluate and optimize the magnetic properties of magnetic connectors, it is necessary to analyze and study from multiple perspectives. By selecting the appropriate magnet material and shape, optimizing the size and magnetization of the magnet, reducing the air gap and adopting multi-pole magnetization technology, the magnetic force size and application performance of the magnetic connector can be effectively improved. At the same time, in practical applications, it is necessary to determine the appropriate magnetic force size according to the specific needs and application scenarios to ensure the stability and reliability of the product.
